My first drone project back in 2013, DroneStation

In the old days i was one of the first parrot AR 2.0 drone users.
Was a pretty nifty machine.
Only the damn things range was a real cry.. Based on WiFi and range of 50 meters..
Also the battery was a shame, 12 minutes.

I wanted more! and i started playing around and thinking of other ways. Then it came to me!
Way before (2013) parrot came with it’s sky controller i already had build my own!

Parrots version
skycontroller_tablet

Meet Drone Station

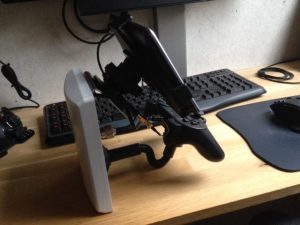

1157588_562300433829194_1098078067_n

1150426_562300430495861_1427293683_n

This build consists out of te following hardware:
Google Nexus 7 Tablet with 12DBi Bi-Directionele focus antenna soldered straight to the systemboard of tablet.
Nexus 7 brodit car mount and a PS3 controller modded to a brodit holder..

993337_560577064001531_495787261_n

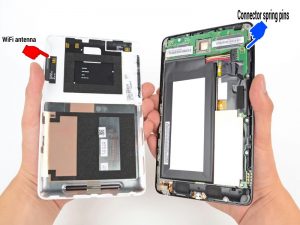

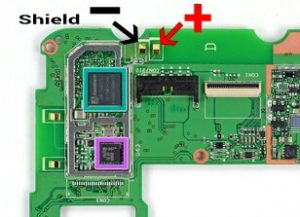

nexiiopen posneg

The nexus 7 tablet was a nice victim to try this mod. Had easy accessible wifi ports and wifi already was covered in the casing.
It was just a way of removing wifi connectors and soldering on an external connector for the big antenna.
1001222_560571294002108_922892433_n

526447_560570744002163_500488569_n

This mod resulted in a range increase to 1.2 kilometer!
Test flight gave me a one way trip due to the 12 minute battery.
During flight i kept a 100% signal and -52 db strengt.
